MANOY® Shaft Seal

Type 205

Start Request
MANOY® Shaft Seal

Type 219

Start Request
MANOY® Shaft Seal

Type 229

Start Request

TECHNICAL DATAS

inner sealing inner sealing inner sealing
Motion Motion Motion
rotary, partially static rotary, partially static rotary, partially static
Direction of pressure Direction of pressure Direction of pressure
unidirectional unidirectional unidirectional
Operating pressure (MPa) Operating pressure (MPa) Operating pressure (MPa)
4 4 4
Rotary speed (m/s) Rotary speed (m/s) Rotary speed (m/s)
40 40 40
Diameter range (mm) Diameter range (mm) Diameter range (mm)
6 to 250 6 to 1200 6 to 250
Housing Housing Housing
split

split

split

Type 205 inner sealing
Motion rotary, partially static
Direction of pressure unidirectional
Operating pressure (MPa) 4
Rotary speed (m/s) 40
Diameter range (mm) 6 to 250
Housing split
Type 219 inner sealing
Motion rotary, partially static
Direction of pressure unidirectional
Operating pressure (MPa) 4
Rotary speed (m/s) 40
Diameter range (mm) 6 to 1200
Housing split
Type 229 inner sealing
Motion rotary, partially static
Direction of pressure unidirectional
Operating pressure (MPa) 4
Rotary speed (m/s) 40
Diameter range (mm) 6 to 250
Housing split

APPLICATIONS

  • Motor shafts
  • Gear and dri­ve unit shafts
  • Fan shafts
  • Clam­ping tools
  • App­li­ca­ti­ons at high speed and low pres­su­re

CHARACTERISTICS

  • Pres­su­re-activa­ted seal ener­gi­za­ti­on
  • The inte­gra­ted or tur­ned out wedge pre­vents the sealing lip tur­ning insi­de out
  • Very long seal life due to high abra­si­on resis­tan­ce
  • Mate­ri­al only gene­ra­tes low fric­tio­n­al force
  • Sealing lip does not stick to the mating sur­face even after pro­lon­ged shut­down

TEMPERATURE RANGE

From ‑60 to +200 °C (tem­pora­ri­ly +260 °C)

but depen­dent on the mate­ri­al of the sealing lip and the O‑ring of the secon­da­ry seal in each case.

MATERIALS

IDG sealing lip mate­ri­al

  • 36B
  • 32B (oil hydrau­lics, pneu­ma­tics)
  • 82B (oil hydrau­lics, water hydrau­lics)
  • 40A (pneu­ma­tics)

Mate­ri­als Casing/clamping ring mate­ri­al

  • IDG mate­ri­al M41 (stain­less steel, mate­ri­al No. 1.4301)

O‑ring elas­to­mer (secon­da­ry seal)

  • NBR
  • FKM (hig­her chemical/temperature resis­tan­ce)

Mate­ri­al descrip­ti­on and other mate­ri­als for wider app­li­ca­ti­ons FIND OUT MORE >

PV limits

This dia­gram gives PV limits which should be con­si­de­red as recom­men­da­ti­ons.

Prac­ti­cal preli­mi­na­ry tests are necessa­ry near the limit cur­ves and also for tem­pe­ra­tures and fluids dif­fe­rent from the ones used here.

Flu­id: Hydrau­lic oils, hydrau­lic fluids HFA and HFB
Tem­pe­ra­tu­re: 80 °C max.
Shaft seal mate­ri­al: 82B
Moti­on: Rota­ry

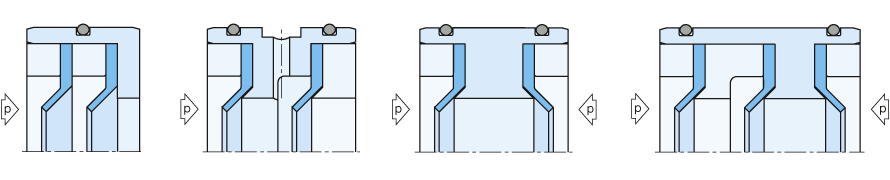

Examp­les of non-stan­dard ver­si­ons
